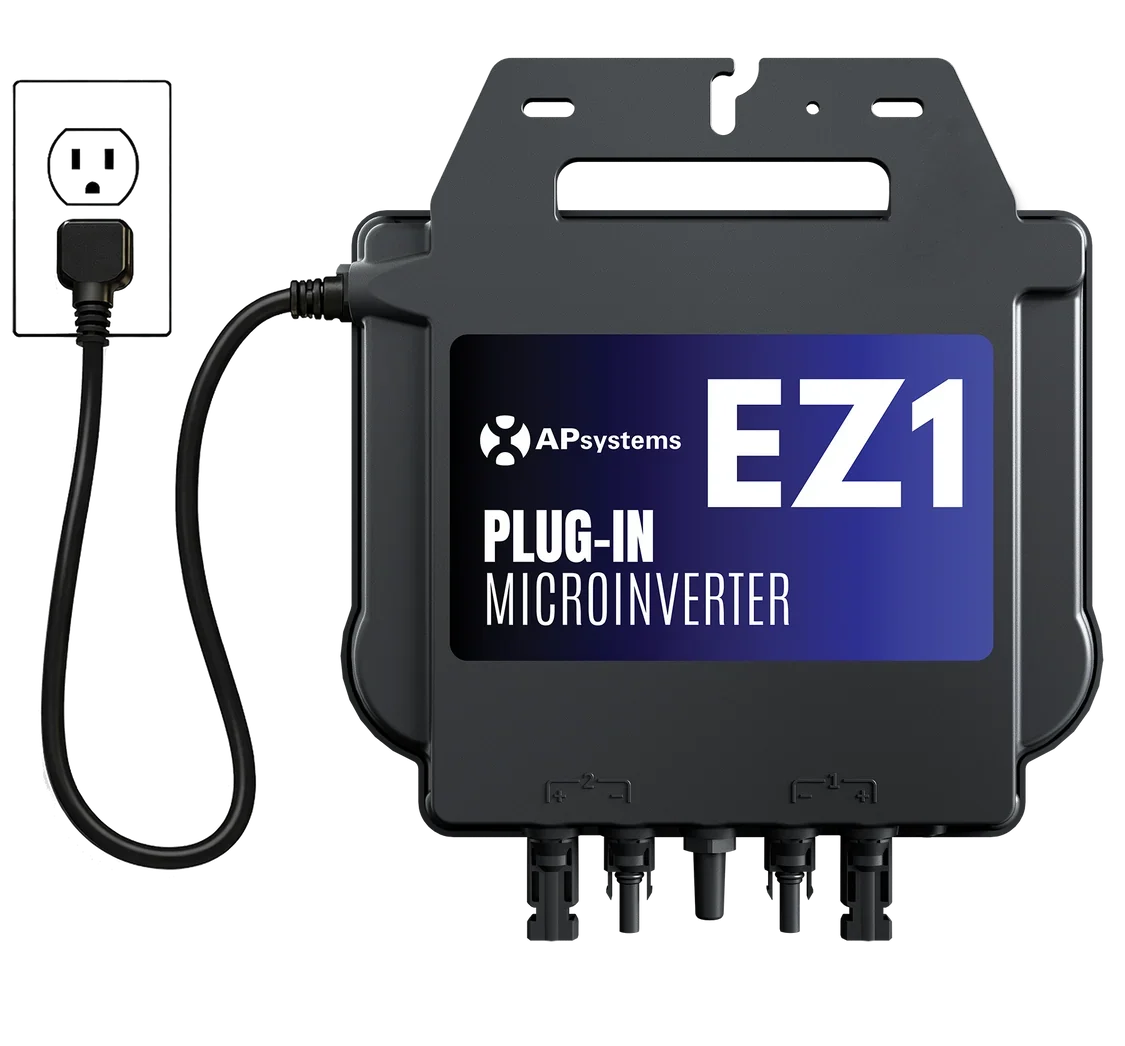

EZ1-LV
Wi-Fi Version for DIY
One microinverter connects to two modules
Max output power reaching 900VA
Two input channels with independent MPPT
High Input current to adapter to large modules
Maximum reliability, Type 6
Built in Wi-Fi and Bluetooth
Safety protection relay integrated
Dedicated for balcony and DIY systems
PRODUCT FEATURES
The EZ1-LV are APsystems 3rd generation of dual microinverters, they are dedicated designed for balcony and DIY systems, EZ1-LV micorinverters have 2 input channels with independent MPPT and high input current and output power to adapt to today’s larger power module.
Users could directly connect to the EZ1-LV with their cell phones through Bluetooth and get the real-time data of the solar systems. Besides direct connection, EZ1-LV could also connect to a router through Wi-Fi and send data to cloud servers for remote monitoring.
Through an AC extension cable available from APsystems (optional), the EZ1-LV could be plugged into a socket and start output energy, truly easy and convenient grid connection.
EZ1-LV Application Figure
| Datasheet | EZ1-LV Microinverter | |
|---|---|
| Model | EZ1-LV |
| Region | USA / Canada |
Input Data (DC)
| Recommended PV Module Power (STC) Range | 315Wp-660Wp+ |
| Peak Power Tracking Voltage | 27V-45V |
| Operating Voltage Range | 26V-60V |
| Maximum Input Voltage | 60V |
| Maximum Input Current | 18A x 2 |
| Maximum Input Short Circuit Current | 25A per input |
Output Data (DC)
| Recommended PV Module Power (STC) Range | 315Wp-660Wp+ |
| Peak Power Tracking Voltage | 27V-45V |
| Operating Voltage Range | 26V-60V |
| Maximum Input Voltage | 60V |
| Maximum Input Current | 18A x 2 |
| Maximum Input Short Circuit Current | 25A per input |
Efficiency
| Peak Efficiency | 96% |
| Nominal MPPT Efficiency | 99.5% |
| Night Power Consumption | 20mW |
Mechanical Data
| Operating Ambient Temperature Range | -40°F to +149°F(- 40 °C to + 65 °C) |
| Storage Temperature Range | -40°F to +185°F(- 40 °C to + 85 °C) |
| Dimensions (W x H x D) | 11.1” × 9.2” × 1.6”(283mm x 233mm x 39.5mm) |
| Weight | 9.3lbs(4.2kg) |
| DC Connector Type | MC4 Compatible |
| Cooling | Natural Convection - No Fans |
| Enclosure Environmental Rating | Type 6 |
US Power Cord
| Wire Size | 16AWG |
| Cable Length | 5M as default |
| Plug Type | 120V Standard plug |
Features
| Communication | Built-in Wi-Fi and Bluetooth |
| Maximum units connected | 2 |
| Isolation Design | High Frequency Transformers, Galvanically Isolated |
| Energy Management | AP EasyPower APP |
| Warranty | 12 Years Standard |
Compliances
| Safety, EMC & Grid Compliances | UL1741; CSA C22.2 No.107.1-16; FCCPart15B; IECS-003; IEEE1547; UL1741SB; SRD-V2.0; NEC2014 & NEC2017 & NEC2020 & NEC2023 Section 690.11 DC Arc-Fault circuit Protection NEC2014 & NEC2017 & NEC2020 & NEC2023 Section 690.12 Rapid Shutdown of PV systems on Buildings |
